Basic |

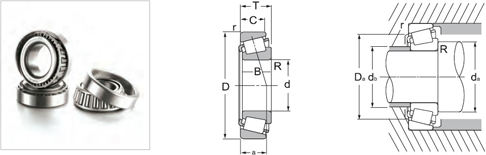

Nominal Bearing Dimensions |
Preferred Shoulder Diameters | ||||||||||||
|
d |
D |
T |
B |
C |
r1 |
r2 |
||||||||
|
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
mm |
inch |
|
|
32004 |
20 | 0.7874 | 42 | 1.6535 | 15 | 0.5906 | 15 | 0.5906 | 12.0 | 0.4724 | 0.6 | 0.024 | 0.6 | 0.024 |
|
32005 |
25 | 0.9843 | 47 | 1.8504 | 15 | 0.5906 | 15 | 0.5906 | 11.5 | 0.4528 | 0.6 | 0.024 | 0.6 | 0.024 |
|
32006 |
30 | 1.1811 | 55 | 2.1654 | 17 | 0.6693 | 17 | 0.6693 | 13.0 | 0.5118 | 1.0 | 0.039 | 1.0 | 0.039 |
|
32007 |
35 | 1.3780 | 62 | 2.4409 | 18 | 0.7087 | 18 | 0.7087 | 14.0 | 0.5512 | 1.0 | 0.039 | 1.0 | 0.039 |
|
32008 |
40 | 1.5748 | 68 | 2.6772 | 19 | 0.7480 | 19 | 0.7480 | 14.5 | 0.5709 | 1.0 | 0.039 | 1.0 | 0.039 |
|
32009 |
45 | 1.7717 | 75 | 2.9528 | 20 | 0.7874 | 20 | 0.7874 | 15.5 | 0.6102 | 1.0 | 0.039 | 1.0 | 0.039 |
|
32010 |
50 | 1.9685 | 80 | 3.1496 | 20 | 0.7874 | 20 | 0.7874 | 15.5 | 0.6102 | 1.0 | 0.039 | 1.0 | 0.039 |
|
32011 |
55 | 2.1654 | 90 | 3.5433 | 23 | 0.9055 | 23 | 0.9055 | 17.5 | 0.6890 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32012 |
60 | 2.3622 | 95 | 3.7402 | 23 | 0.9055 | 23 | 0.9055 | 17.5 | 0.6890 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32013 |
65 | 2.5591 | 100 | 3.9370 | 23 | 0.9055 | 23 | 0.9055 | 17.5 | 0.6890 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32014 |
70 | 2.7559 | 110 | 4.3307 | 25 | 0.9843 | 25 | 0.9843 | 19.0 | 0.7480 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32015 |
75 | 2.9528 | 115 | 4.5276 | 25 | 0.9843 | 25 | 0.9843 | 19.0 | 0.7480 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32016 |
80 | 3.1496 | 125 | 4.9213 | 29 | 1.1417 | 29 | 1.1417 | 22.0 | 0.8661 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32017 |
85 | 3.3465 | 130 | 5.1181 | 29 | 1.1417 | 29 | 1.1417 | 22.0 | 0.8661 | 1.5 | 0.059 | 1.5 | 0.059 |
|
32018 |
90 | 3.5433 | 140 | 5.5118 | 32 | 1.2598 | 32 | 1.2598 | 24.0 | 0.9449 | 2.0 | 0.079 | 1.5 | 0.059 |
|
32019 |
95 | 3.7402 | 145 | 5.7087 | 32 | 1.2598 | 32 | 1.2598 | 24.0 | 0.9449 | 2.0 | 0.079 | 1.5 | 0.059 |
|
32020 |
100 | 3.9370 | 150 | 5.9055 | 32 | 1.2598 | 32 | 1.2598 | 24.0 | 0.9449 | 2.0 | 0.079 | 1.5 | 0.059 |
|
32021 |
105 | 4.1339 | 160 | 6.2992 | 35 | 1.3780 | 35 | 1.3780 | 26.0 | 1.0236 | 2.5 | 0.098 | 2.0 | 0.079 |
|
32022 |
110 | 4.3307 | 170 | 6.6929 | 38 | 1.4961 | 38 | 1.4961 | 29.0 | 1.1417 | 2.5 | 0.098 | 2.0 | 0.079 |
|
32024 |
120 | 4.7244 | 180 | 7.0866 | 38 | 1.4961 | 38 | 1.4961 | 29.0 | 1.1417 | 2.5 | 0.098 | 2.0 | 0.079 |
|
32026 |
130 | 5.1181 | 200 | 7.8740 | 45 | 1.7717 | 45 | 1.7717 | 34.0 | 1.3386 | 2.5 | 0.098 | 2.0 | 0.079 |
|
32028 |
140 | 5.5118 | 210 | 8.2677 | 45 | 1.7717 | 45 | 1.7717 | 34.0 | 1.3386 | 2.5 | 0.098 | 2.0 | 0.079 |
|
32030 |
150 | 5.9055 | 225 | 8.8583 | 48 | 1.8898 | 48 | 1.8898 | 36.0 | 1.4173 | 3.0 | 0.118 | 2.5 | 0.098 |
|
32032 |
160 | 6.2992 | 240 | 9.4488 | 51 | 2.0079 | 51 | 2.0079 | 38.0 | 1.4961 | 3.0 | 0.118 | 2.5 | 0.098 |
|
32034 |
170 | 6.6929 | 260 | 10.2362 | 57 | 2.2441 | 57 | 2.2441 | 43.0 | 1.6929 | 3.0 | 0.118 | 2.5 | 0.098 |
☆We reserve the right to change specifications and other information included in this catalogue without notice.
|
Basic |
Preferred Shoulder |
Basic Load |
Effective Load Center |
Limiting Speeds |
Bearing Weight (Approx.) |
||||||||
|
da (min) |
db (max) |
Da (max) |
Cr |
Cor |
a |
Grease |
Oil |
Weight |
|||||
|
mm |
inch |
mm |
inch |
mm |
inch |
KN |
KN |
mm |
rpm |
rpm |
Ibs |
kg |
|
|
32004 |
24.5 | 0.965 | 25 | 0.984 | 37.5 | 1.476 | 24.9 | 27.9 | 10.5 | 9500 | 13000 | 0.213 | 0.097 |
|
32005 |
29.5 | 1.161 | 30 | 1.181 | 42.5 | 1.673 | 27.8 | 33.5 | 12.0 | 8000 | 11000 | 0.251 | 0.114 |
|
32006 |
35.5 | 1.398 | 35 | 1.378 | 49.5 | 1.949 | 37.5 | 46.5 | 13.5 | 6900 | 9200 | 0.365 | 0.166 |
|
32007 |
40.5 | 1.594 | 40 | 1.575 | 56.5 | 2.224 | 41.5 | 52.5 | 15.5 | 6100 | 8100 | 0.493 | 0.224 |
|
32008 |
45.5 | 1.791 | 46 | 1.811 | 62.5 | 2.461 | 50.0 | 65.5 | 15.0 | 5300 | 7100 | 0.601 | 0.273 |
|
32009 |
50.5 | 1.988 | 51 | 2.008 | 69.5 | 2.736 | 57.5 | 76.5 | 16.5 | 4800 | 6400 | 0.761 | 0.346 |
|
32010 |
55.5 | 2.185 | 56 | 2.205 | 74.5 | 2.933 | 62.5 | 88.0 | 17.5 | 4400 | 6000 | 0.805 | 0.366 |
|
32011 |
63.5 | 2.500 | 63 | 2.480 | 81.5 | 3.209 | 80.5 | 118.0 | 20.0 | 4000 | 5400 | 1.239 | 0.563 |
|
32012 |
68.5 | 2.697 | 67 | 2.638 | 86.5 | 3.406 | 82.0 | 123.0 | 21.0 | 3700 | 5000 | 1.267 | 0.576 |
|
32013 |
73.5 | 2.894 | 72 | 2.835 | 91.5 | 3.602 | 83.0 | 128.0 | 22.5 | 3400 | 4600 | 1.386 | 0.630 |
|
32014 |
78.5 | 3.091 | 78 | 3.071 | 101.5 | 3.996 | 105.0 | 160.0 | 24.0 | 3200 | 4300 | 1.866 | 0.848 |
|
32015 |
83.5 | 3.287 | 83 | 3.268 | 106.5 | 4.193 | 106.0 | 167.0 | 25.5 | 3000 | 4000 | 2.000 | 0.909 |
|
32016 |
88.5 | 3.484 | 89 | 3.504 | 116.5 | 4.587 | 139.0 | 216.0 | 27.0 | 2800 | 3700 | 2.816 | 1.280 |
|
32017 |
93.5 | 3.681 | 94 | 3.701 | 121.5 | 4.783 | 142.0 | 224.0 | 28.5 | 2600 | 3600 | 2.970 | 1.350 |
|
32018 |
100.0 | 3.937 | 100.0 | 3.937 | 131.5 | 5.177 | 168.0 | 270.0 | 30.0 | 2500 | 3300 | 3.938 | 1.790 |
|
32019 |
105.0 | 4.134 | 105.0 | 4.134 | 136.5 | 5.374 | 171.0 | 280.0 | 31.5 | 2400 | 3200 | 4.026 | 1.830 |
|
32020 |
110.0 | 4.331 | 109.0 | 4.291 | 141.5 | 5.571 | 170.0 | 281.0 | 32.5 | 2200 | 3000 | 4.202 | 1.910 |
|
32021 |
120.0 | 4.724 | 115.0 | 4.528 | 150.0 | 5.906 | 204.0 | 340.0 | 34.3 | 2100 | 2800 | 5.467 | 2.480 |
|
32022 |
125.0 | 4.921 | 121.0 | 4.764 | 160.0 | 6.299 | 236.0 | 390.0 | 35.9 | 2000 | 2700 | 6.812 | 3.090 |
|
32024 |
135.0 | 5.315 | 131.0 | 5.157 | 170.0 | 6.693 | 245.0 | 420.0 | 39.7 | 1800 | 2500 | 7.209 | 3.270 |
|
32026 |
145.0 | 5.709 | 144.0 | 5.669 | 190.0 | 7.480 | 320.0 | 545.0 | 43.9 | 1700 | 2200 | 11.155 | 5.060 |
|
32028 |
155.0 | 6.102 | 152.0 | 5.984 | 200.0 | 7.874 | 330.0 | 580.0 | 46.6 | 1600 | 2100 | 11.729 | 5.320 |
|
32030 |
168.0 | 6.614 | 164.0 | 6.457 | 213.0 | 8.386 | 375.0 | 655.0 | 49.8 | 1400 | 2000 | 14.550 | 6.600 |
|
32032 |
178.0 | 7.008 | 175.0 | 6.890 | 228.0 | 8.976 | 435.0 | 790.0 | 53.0 | 1400 | 1800 | 17.483 | 7.930 |
|
32034 |
188.0 | 7.402 | 187.0 | 7.362 | 248.0 | 9.764 | 505.0 | 895.0 | 56.6 | 1300 | 1700 | 23.369 | 10.60 |
