产品中心> 深沟球轴承公制60系列
深沟球轴承公制60系列

Metric >>Inch >>


适用所有密封结构

轴承
型号

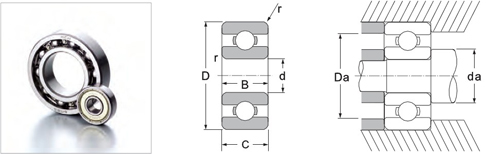

主要尺寸
推荐安装尺寸
d
D
B,C
r (最小)
da (最小)
da (最大)
Da (最大)
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
604
4
0.1575
12
0.4724
4
0.1575
0.2
0.008
5.4
0.2126
6.6
0.2598
10.6
0.4173
605
5
0.1969
14
0.5512
5
0.2756
0.2
0.008
6.6
0.2600
7.4
0.2913
12.4
0.4880
606
6
0.2362
17
0.6693
6
0.2756
0.3
0.012
8.0
0.3150
8.6
0.3386
15.0
0.5910
607
7
0.2756
19
0.748
6
0.2756
0.3
0.012
9.0
0.3543
10.4
0.4094
17.0
0.6693
608
8
0.3149
22
0.8661
7
0.2756
0.3
0.012
10.0
0.3937
12.2
0.4803
10.0
0.7874
609
9
0.3543
24
0.9449
7
0.2756
0.3
0.012
11.0
0.4331
13.1
0.5157
12.0
0.8661
6000
10
0.3937
26
1.0236
8
0.3150
0.3
0.012
12.0
0.4720
13.5
0.5315
24.1
0.9490
6001
12
0.4724
28
1.1024
8
0.3150
0.3
0.012
14.0
0.5510
16.0
0.6299
26.0
1.0240
6002
15
0.5906
32
1.2598
9
0.3543
0.3
0.012
17.0
0.6690
19.0
0.7480
30.0
1.1810
6003
17
0.6693
35
1.378
10
0.3937
0.3
0.012
19.0
0.7480
21.5
0.8470
33.0
1.2990
6004
20
0.7874
42
1.6535
12
0.4724
0.6
0.024
24.0
0.9450
26.0
1.0236
38.0
1.4960
6005
25
0.9843
47
1.8504
12
0.4724
0.6
0.024
29.0
1.1420
30.5
1.2008
43.0
1.6930
6006
30
1.1811
55
2.1654
13
0.5118
1.0
0.039
35.0
1.3780
37.0
1.4567
50.0
1.9690
6007
35
1.378
62
2.4409
14
0.5512
1.0
0.039
40.0
1.5750
42.0
1.6535
57.0
2.2440
6008
40
1.5748
68
2.6772
15
0.5906
1.0
0.039
45.0
1.7720
47.5
1.8720
63.0
2.4800
6009
45
1.7717
75
2.9528
16
0.6299
1.0
0.039
50.0
1.9690
53.5
2.1080
70.0
2.7560
6010
50
1.9685
80
3.1496
16
0.6299
1.0
0.039
55.0
2.1650
58.5
2.3050
75.0
2.9530
6011
55
2.1654
90
3.5433
18
0.7087
1.1
0.043
61.5
2.4210
64.2
2.5280
83.5
3.2870
6012
60
2.3622
95
3.7402
18
0.7087
1.1
0.043
66.5
2.6180
69.1
2.7190
88.5
3.4840
6013
65
2.9551
100
3.937
18
0.7087
1.1
0.043
71.5
2.8150
74.0
2.9134
93.5
3.6810
6014
70
2.7559
110
4.3307
20
0.7874
1.1
0.043
76.5
3.0120
80.5
3.1693
103.5
4.0750
6015
75
2.9528
115
4.5276
20
0.7874
1.1
0.043
81.5
3.2090
85.6
3.3690
108.5
4.2720
6016
80
3.1496
125
4.9213
22
0.8661
1.1
0.043
86.5
3.4055
91.5
3.6024
118.5
4.6653
6017
85
3.3465
130
5.1181
22
0.8661
1.1
0.043
91.5
3.6024
97.0
3.8189
123.5
4.8622
6018
90
3.5433
140
5.5118
24
0.9449
1.5
0.059
98.0
3.8583
102.0
4.0157
132.0
5.1968
6019
95
3.7402
145
5.7087
24
0.9449
1.5
0.059
103.0
4.0551
109.0
4.2913
137.0
5.3937
6020
100
3.9370
150
5.9055
24
0.9449
1.5
0.059
108.0
4.2520
110.0
4.3307
142.0
5.5905
6021
105
4.1399
160
6.2992
26
1.0236
2
0.078
114.0
4.4882
119.0
4.6850
151.0
5.9449
6022
110
4.3307
170
6.6929
28
1.1024
2
0.078
119.0
4.6850
126.0
4.9606
161.0
6.3386
6024
120
4.7244
180
7.0866
28
1.1024
2
0.078
129.0
5.0787
136.0
5.3543
171.0
6.7323
6026
130
5.1181
200
7.8740
33
1.2992
2
0.078
139.0
5.4724
148.0
5.8268
191.0
7.5197

☆本公司保留修改表中技术规则和其它数据的权利

轴承
型号
额定基本负荷
因素
极限转速
装球数
重量
Cr
KN

Cor
KN

fo

脂
rpm

油
rpm

球数

尺寸
mm

Ibs kg
604 0.97 0.36 10.0 47000 55000 8 1.588 0.0088 0.0040
605 1.33 0.51 10.0 41000 51000 8 2.000 0.0077 0.0035
606 2.19 0.87 12.0 38000 45000 8 2.831 0.0154 0.0070
607 2.34 0.95 13.0 35000 42000 7 3.500 0.0154 0.0070
608 3.45 1.40 12.0 32000 38000 7 3.969 0.0253 0.0115
609 3.90 1.66 13.0 31000 37000 7 3.969 0.0323 0.0147
6000 4.75 1.96 12.4 30000 36000 7 4.763 0.0418 0.0190
6001 5.40 2.36 13.2 29000 33000 8 4.763 0.0453 0.0206
6002 5.85 2.85 13.9 25000 29000 9 4.763 0.0660 0.0300
6003 6.00 3.24 14.4 23000 26000 10 4.763 0.0858 0.0390
6004 9.38 5.03 13.9 18000 21000 9 6.350 0.1518 0.0690
6005 10.07 5.85 14.5 16000 19000 10 6.350 0.1760 0.0800
6006 13.23 8.30 14.8 13000 15000 11 7.144 0.2508 0.1140
6007 15.98 10.28 14.8 12000 14000 11 7.938 0.3256 0.1480
6008 16.78 11.54 15.3 10000 12000 12 7.938 0.4158 0.1890
6009 19.89 13.99 15.3 9200 11000 12 8.731 0.5192 0.2360
6010 20.77 15.38 15.6 8400 9800 13 8.731 0.5588 0.2540
6011 26.85 19.57 15.3 7700 9000 12 10.319 0.8052 0.3660
6012 28.02 21.51 15.6 7100 8300 13 10.319 0.8558 0.3890
6013 32.04 24.92 15.8 6700 8000 13 11.112 0.9680 0.4400
6014 36.77 29.08 15.6 6300 7100 13 12.000 1.3200 0.6000
6015 38.24 31.79 15.8 5800 7000 14 12.000 1.4080 0.6400
6016 42.33 35.64 15.6 5500 6500 14 12.700 1.8788 0.8540
6017 52.80 44.49 15.8 5300 6300 14 14.288 1.9580 0.8900
6018 52.34 45.08 15.6 5000 6000 14 14.288 2.2440 1.0200
6019 63.70 54.00 15.8 4700 5500 14 15.081 2.3760 1.0800
6020 63.70 54.00 15.9 4500 5500 14 16.000 2.5300 1.1500
6021 76.10 65.50 15.8 4200 5000 14 17.000 3.4980 1.5900
6022 85.20 73.50 15.5 4000 4700 14 18.256 4.3120 1.9600
6024 88.40 80.00 15.7 3800 4500 14 19.000 4.5540 2.0700
6026 112.00 101.00 15.8 3200 3800 14 20.638 6.9520 3.1600
